Transformer blocks

Objectives

• Gain a basic understanding of Transformer technology and why it is important.

• Explore transformer block and its main components

Limitations in traditional LM

• RNN based traditional LM failed to track long-range dependencies like understanding how a word at the start of a paragraph relates to one at the end

• RNN based models that processed words one by one (not scalable)

• Ambiguity Resolution: Can’t differentiate specific linguistic problems like determining what “it” refers to in several sentences

Transformer technology

• Transformer technology was introduced in the paper “Attention Is All You Need” to address several limitations in RNN based language modeling (LM)

Limitations and solutions

Limitation	Solution
Long-range dependencies	Contextual Understanding via self-attention mechanism
not scalable	Parallel Processing of tokens
specific linguistic problems	Ambiguity Resolution via self-attention mechanism

Why Is Transformer technology important?

• Scalability:

  • Allows for massive scaling (in terms of parameters and training data size)

  • Leading to the “Large” in LLMs.

• Architectural versatility:

  • The same underlying transformer block architecture is used across various state-of-the-art models (like GPT, Llama, and BERT)

• Versatility performance/behaviour:

  • Enables models to generate coherent, contextually appropriate text and perform a wide range of tasks—from translation to coding—that were previously impossible for computers

  • Effective for both understanding and generating human language

Transformer model

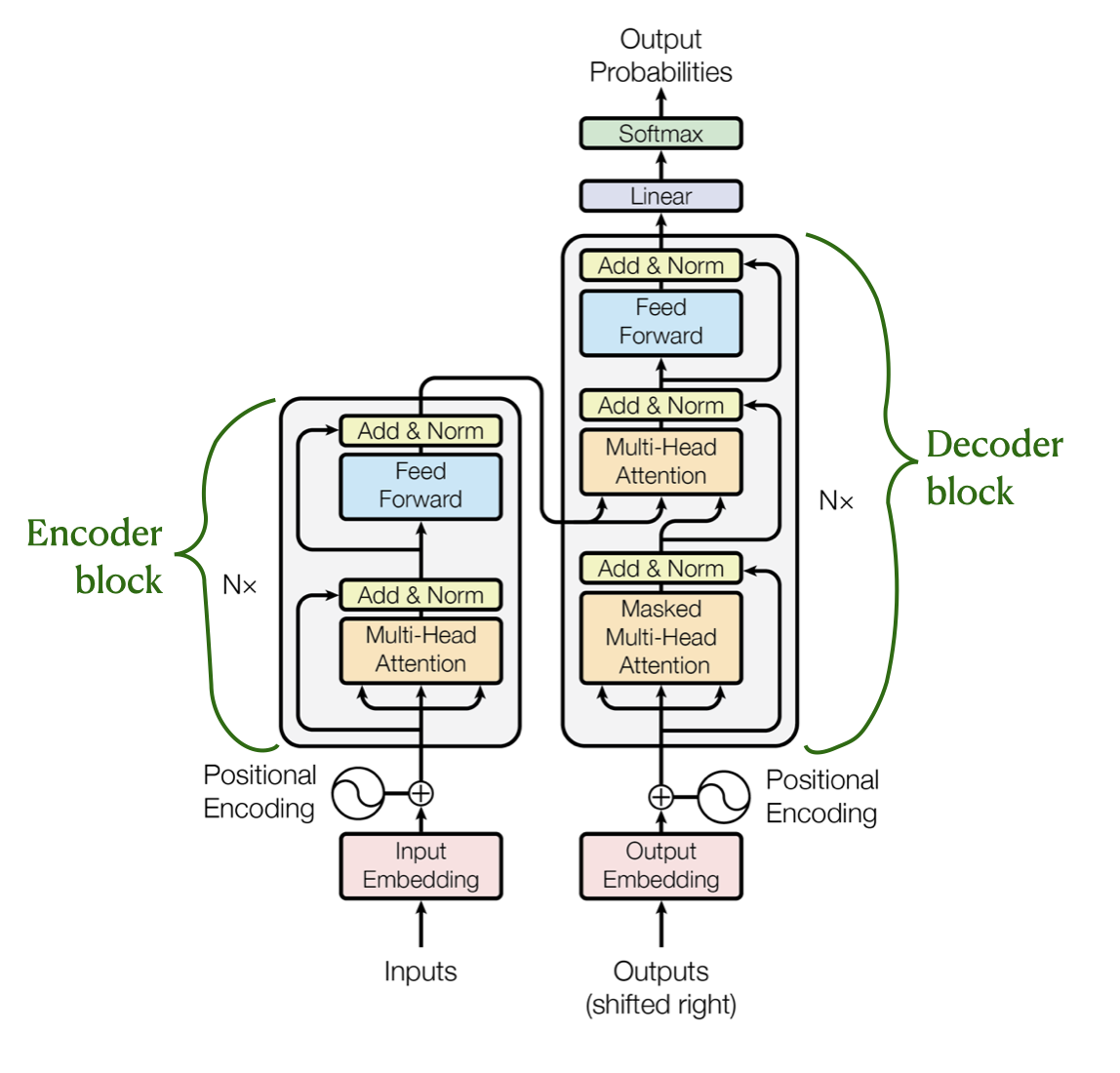

Encoder and Decoder architecture

• Originally developed specifically for machine translation

  • Encoder reads the source sentence (it) and encode it capturing full context

  • Decoder use encoded context and generate output one token at a time

Main characteristics of the original Transformer architecture:

• Dual Submodules

  • Encoder and Decoder

• Contextual Encoding

  • Capture the full context and meaning of the entire input text

• Sequential Generation

  • Decoder takes these encoded vectors as input and generates the final output one token at a time

  • Using the encoder’s information to guide predictions

• Self-Attention Layers

  • Both the encoder and decoder use self-attention mechanisms to capture long-range dependencies

Wide adaption of decoder transformers

• Models like GPT (Generative Pretrained Transformer) discarded the encoder to focus solely on the decoder

• Decoder models are autoregressive - feed their own previous outputs back in as inputs

  • This design is allows the model to write coherent, naturally optimized for text generation

  • Generate continuous text—from poetry to code—by predicting one token at a time

Warning

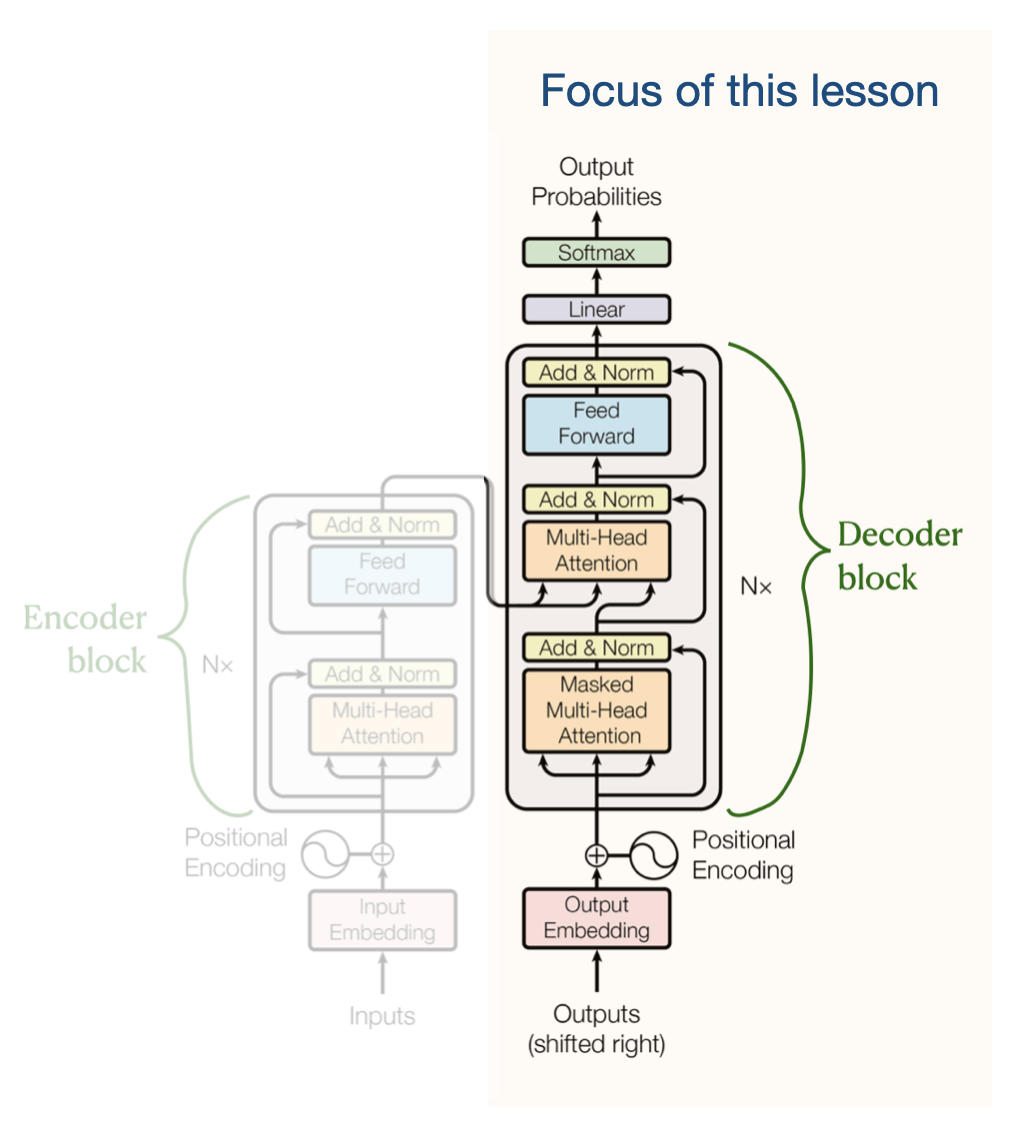

This lesson only focusses on the decoder transformers:

Danger

“Transformer” refer to the “Decoder” from this point onwards (in this lesson)

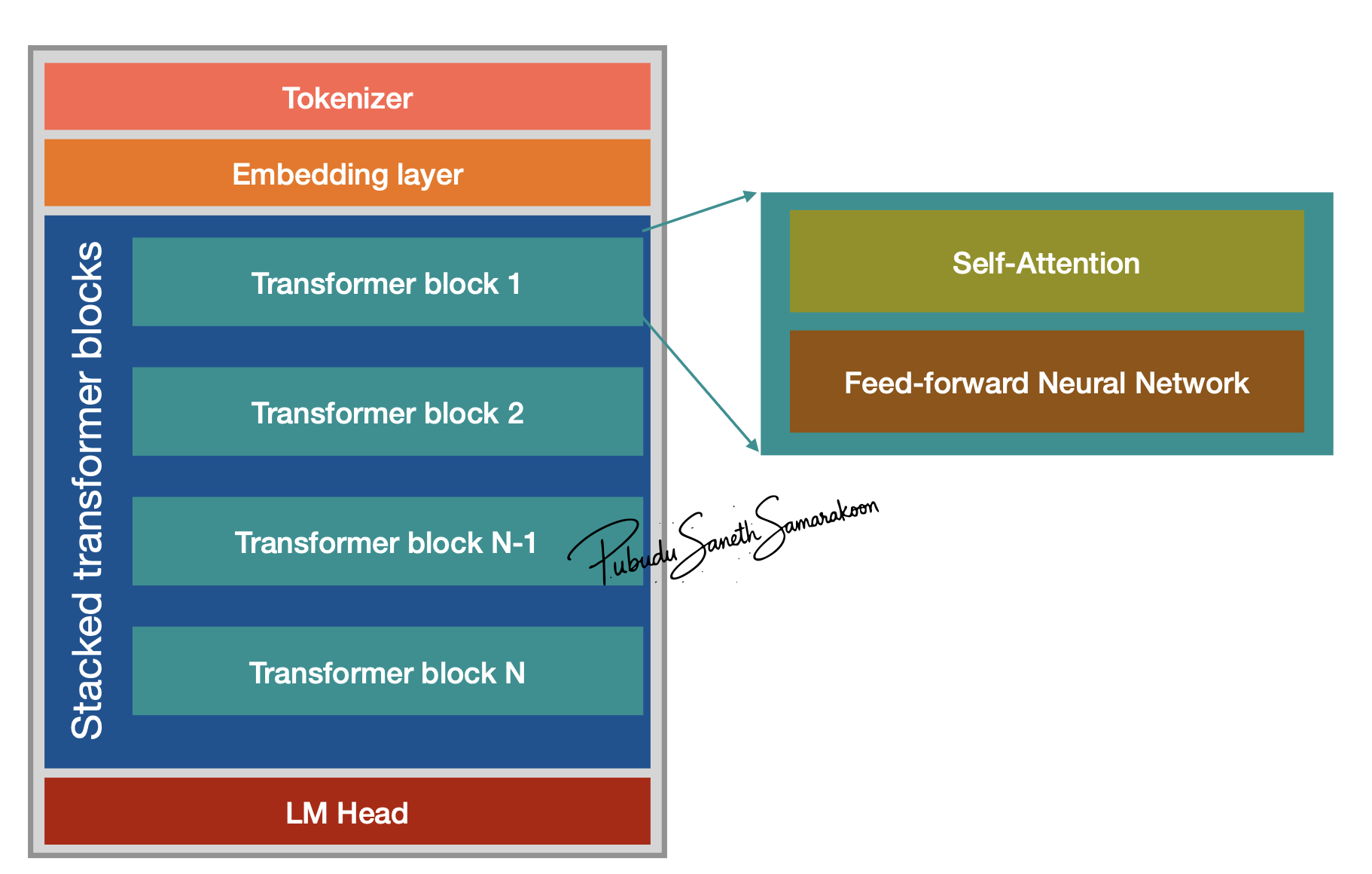

What is a Transformer block?

• Transformer block is the fundamental architectural unit of a LLMs

• LLMs - constructed by stacking these blocks on top of one another

  • Each block processes the input it receives from the previous layer and passes the result to the next

  • Stacked transformer blocks progressively refining the model’s understanding of the text

Main Components of a transformer block

• Attention mechanism

• Feed Forward neural Network

Warning

Following concepts on transformer are not discussed in this lesson

• Normalisation

  • Layer normalisation

  • Root Mean Square Layer Normalization

  • Pre-LayerNorm or Post-LayerNorm

• Residual connections
